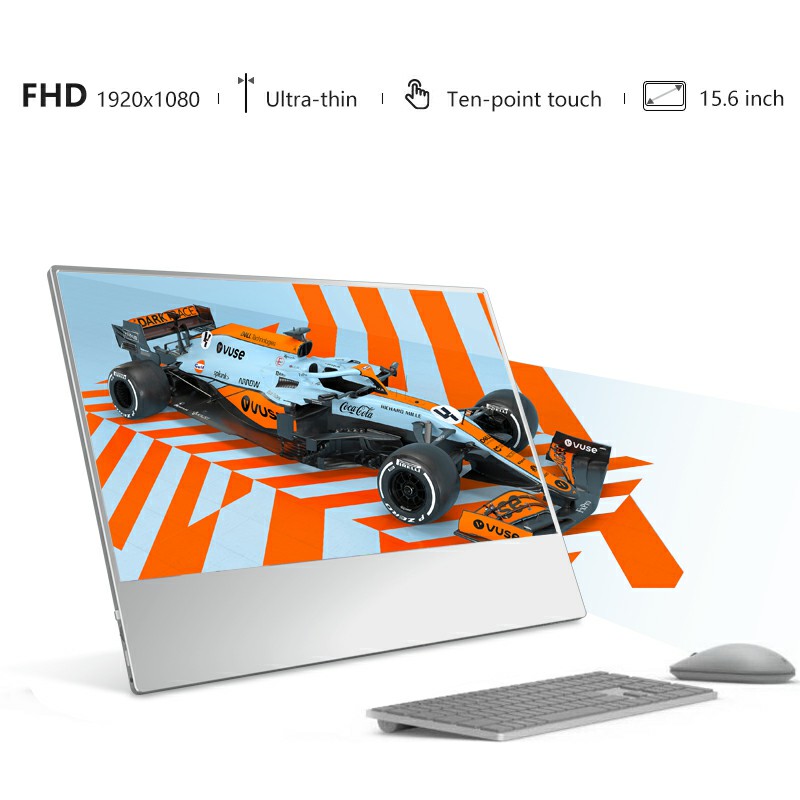

5mm Narrow Bezel Ultra-Thin Slim 15.6 inch 1080p On-Cell Touch Portable Monitor

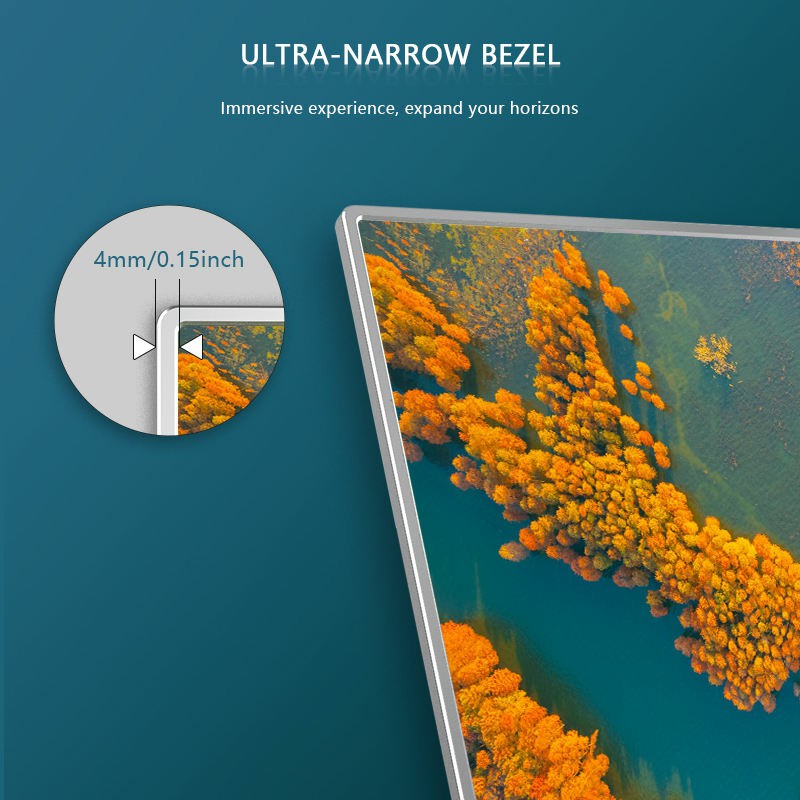

4mm Ultra-Narrow Bezel Ultra-Thin Slim 15.6 inch 1080p On-Cell Touch Portable Monitor support factory OEM ODM

Model: Ultra-thin Slim On-Cell Portable Monitor S14ec-2

Panel Type: 15.6 inch TFT IPS LCD (16:9 Wide) LED Backlight

Resolution: 1920(RGB)×1080, FHD

Color Depth: 62% of sRGB,262K (10-bit)

Touch Screen: On-Cell 10 points touch

Active Area: 344.16×193.59 mm (H×V)

Pixel Pitch: 0.17925×0.17925 mm

Viewing Angle(U/D/L/R): 85/85/85/85 (Typ.)(CR≥10)

Contrast Ratio: 800:1 (Typical)

Flat Ratio: 16:9 (H:V)

Brightness: 250(cd/m²)

Response Time: 30(ms)

Vertical Frequency: 60Hz

Monitor Size: 355*246*5 mm

Monitor Wight: 796 g

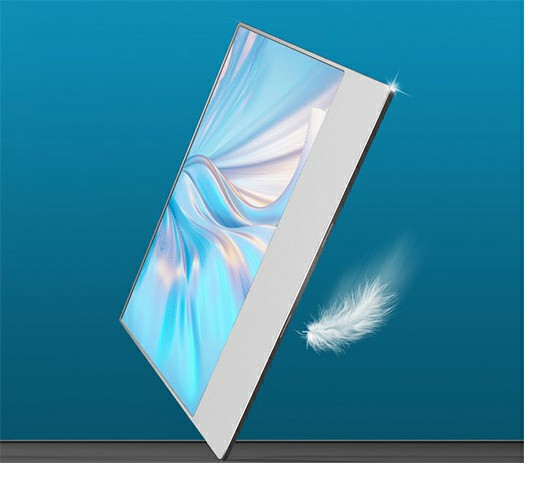

Monitor Housing: High Quality Aluminium Alloy Material, With Narrow border design

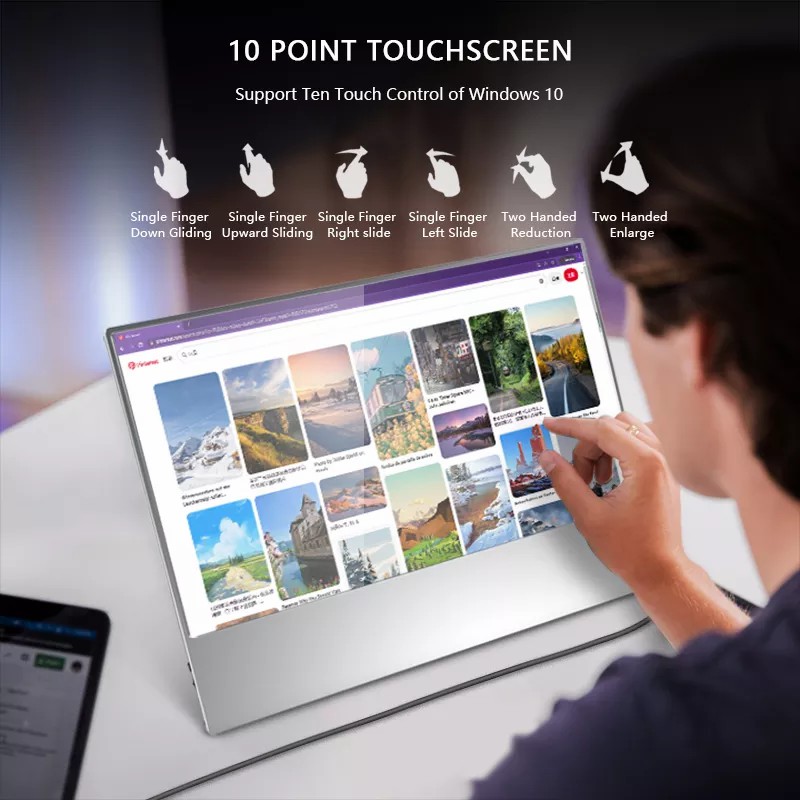

10-POINT CAPACITIVE TOUCH + TOUCH MENU OSD

Adopted Full Lamination On-Cell Touch technology, support much more precise and sensitive touch, no extra driver needed, just connect the USB cable to your device to achieve the touch function. Multi-touch has been tested to work with Windows, Android, Chrome OS and Ubuntu.Support wind7, win8, win8.1, win10; 10 point multi touch(For wind10 only)

(NOTE: All gaming device and mobile phone without full featured type C function can not get touch function.)

LIGHT UP THE WORLD WITH PURE HDR

Watch Picture Perfect Quality Stunning/1080P Images in Pure HDR, With SIBOLAN's Pure HDR Decoding/echnology,

you can Experience the Best Picture Pure Color with 1080P magnification That.

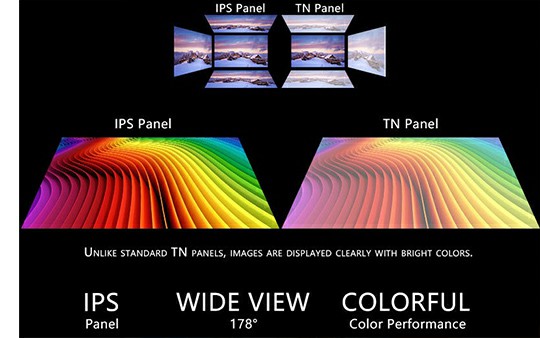

USE HIGH-PERFORMANCE IPS PANEL

Due to the IPS-based panel, the color and contrast changes are not easy to occur from all angles, and the image is clearly displayed.Wide viewing angle of 178° up, down, left, and right.

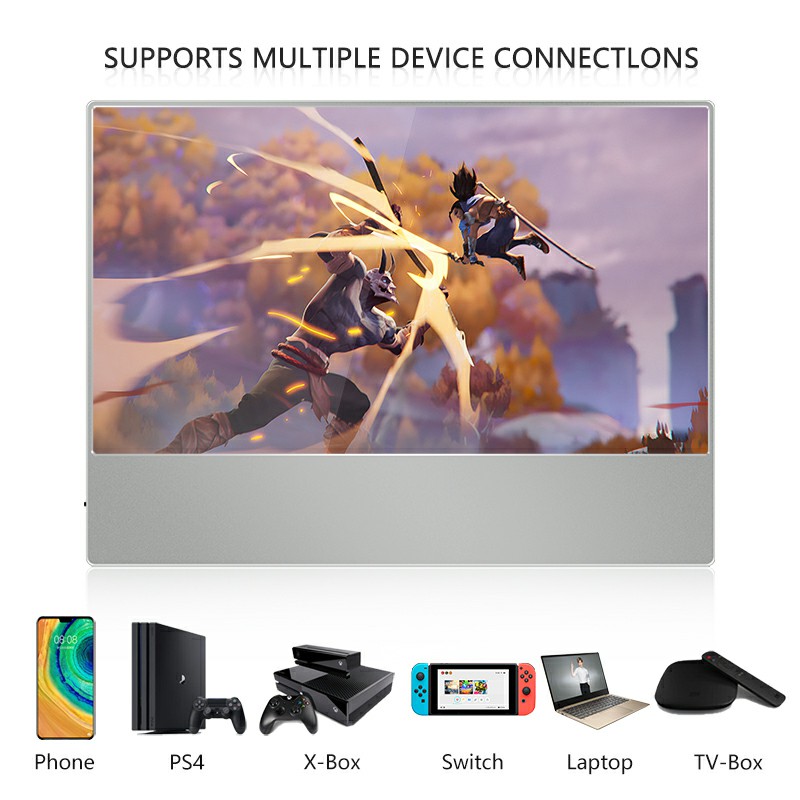

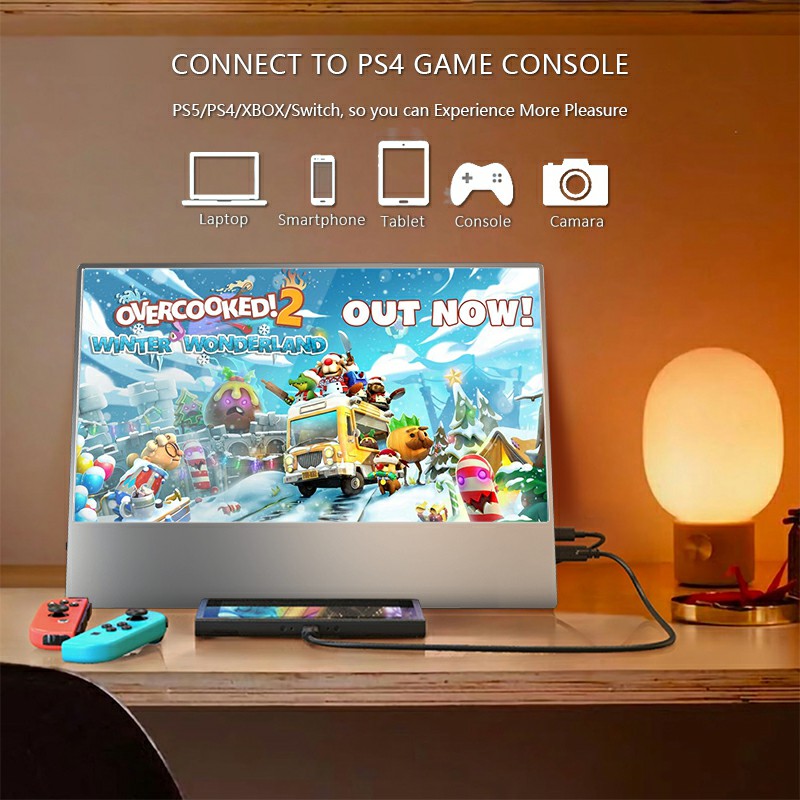

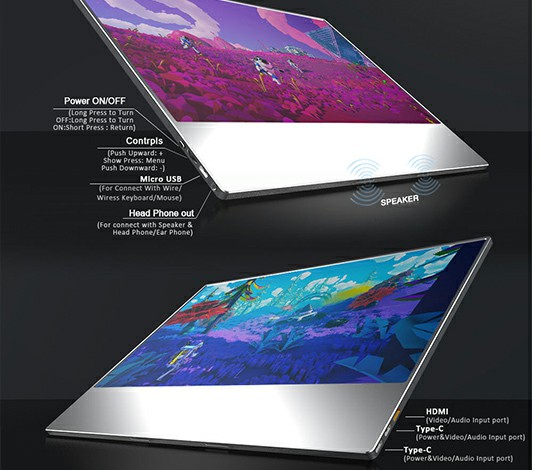

 DUAL USB C AND MINI HDMI INPUT PORT MONITOR

USB-C powered monitor has 2 USB-C and Mini HDMI input ports, it is compatible with multiple devices: Smart Phone (Android, must have full-featured USB-C port) ),laptops, computers, Xbox One, PS5, PS4, Switch, Raspberry Pi, etc.

(Note: While connect your device via Type-C port ,Please check if the Type C of your laptop/phone is a full featured Type C port. Your device should support thunderbolt 3.0 or USB 3.1 Gen2 Type C DP ALT-MODE.If it is just a Type C for charging, it will not be available.)

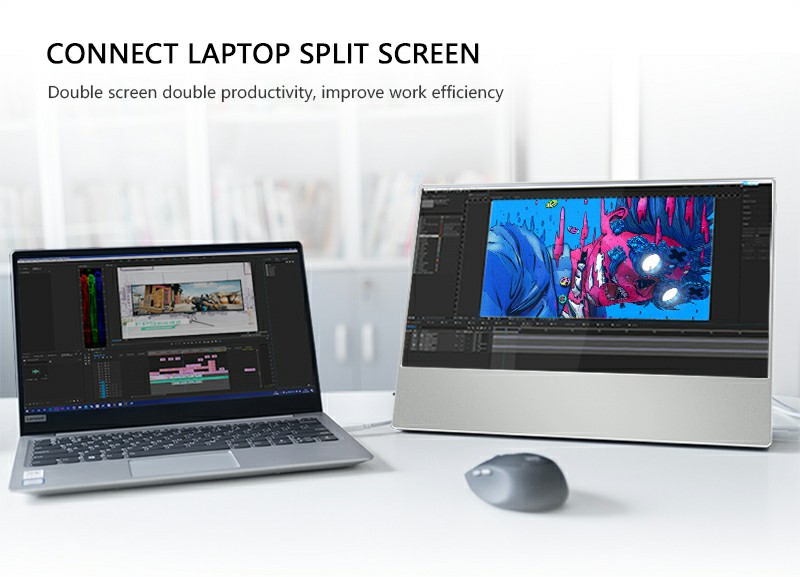

Widely Compatible Laptop Monitor

With a Mini HDMI port and two full-featured USB Type-C ports, suitable for Laptop, PC, Mac, Raspberry Pi, Smartphone, Xbox, PS5, Switch, Steam Deck etc.

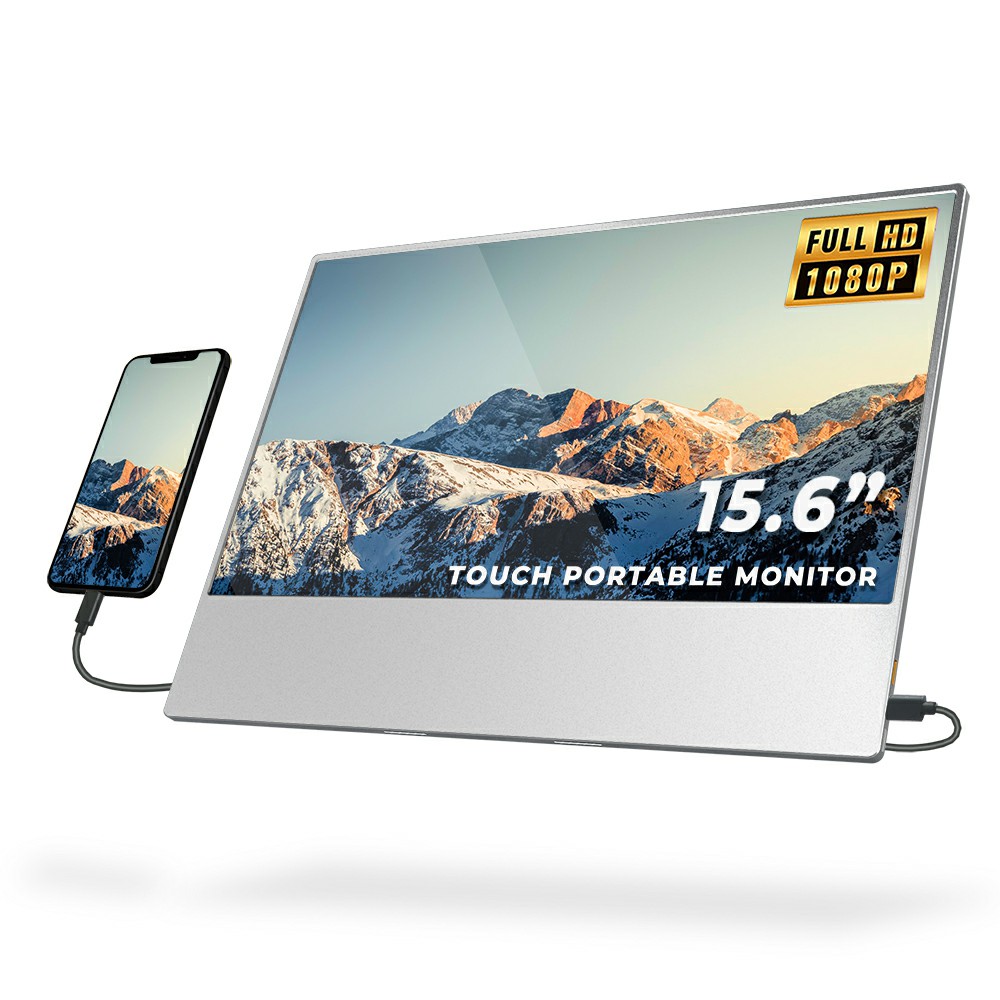

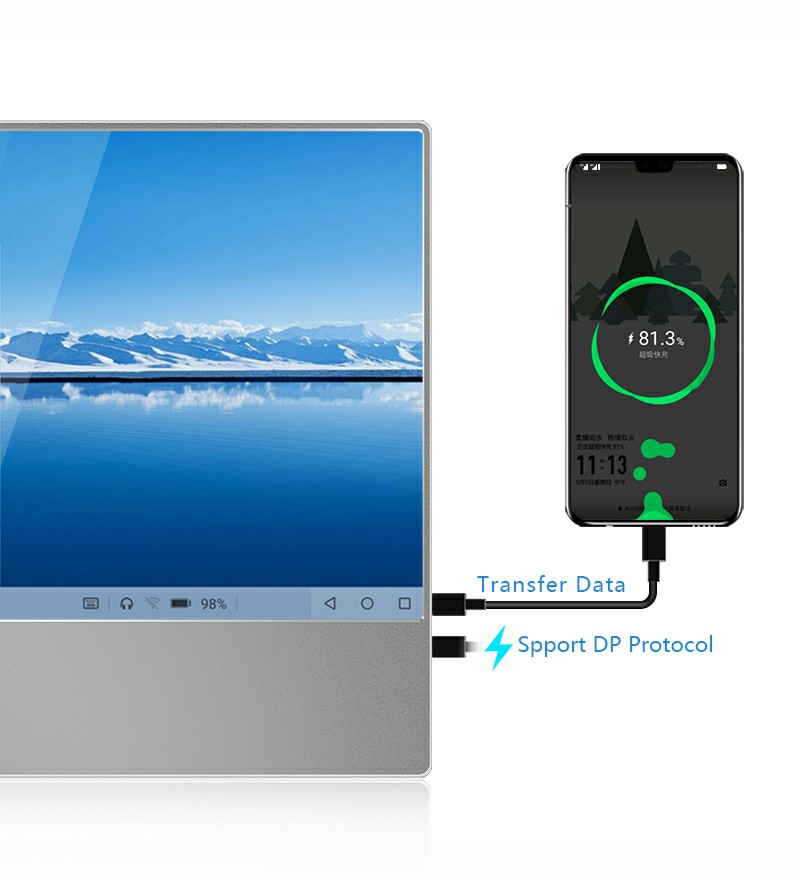

USB TYPE-C PORTABLE MONITOR

When There is no Extermal Power Supply, the Mobile Phonebattery Supplies Power to the Monitor. When the External Power Supply is Connected, the Monitor Charges the MobilePhone Through the External Power Supply.

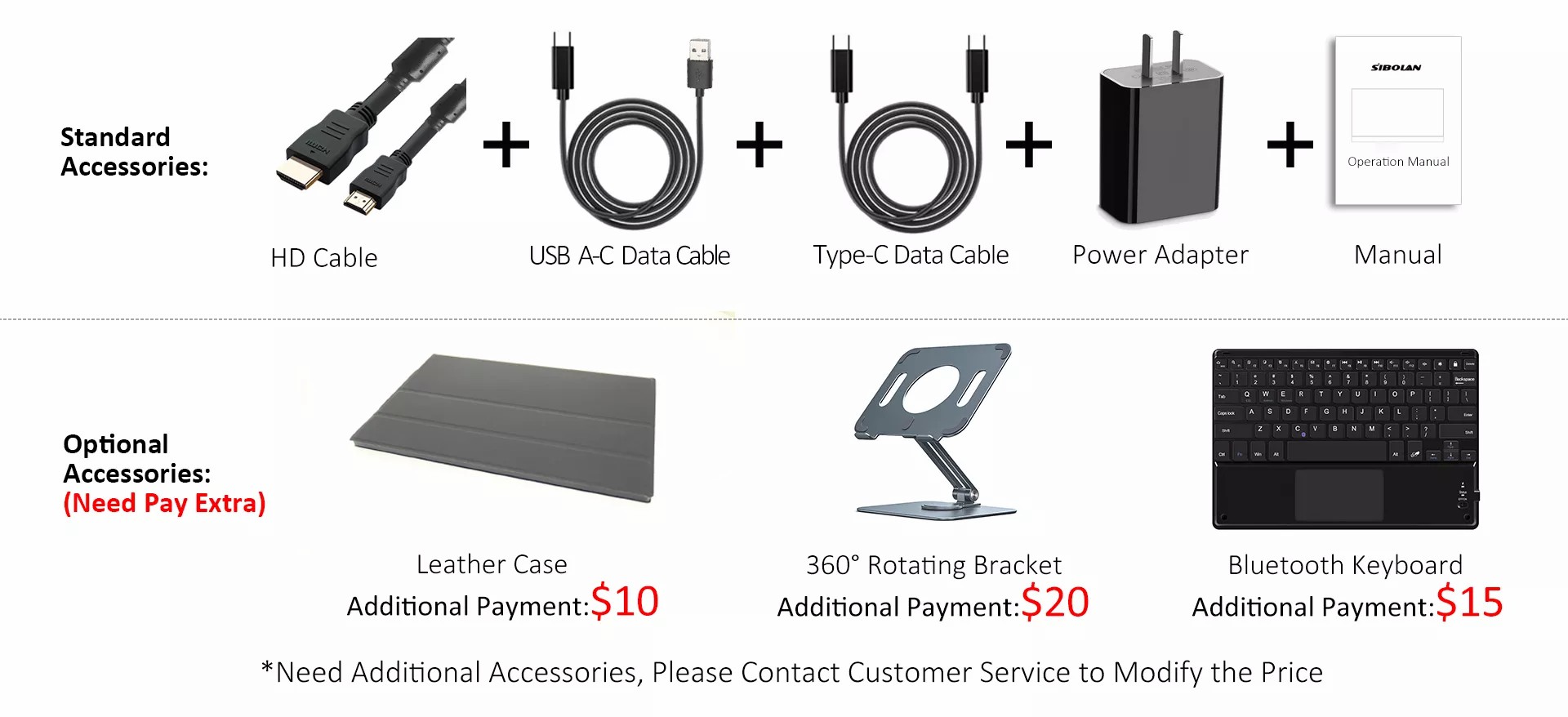

Package List

1*Type-c cable

1*HDMI cable

1*USB power cable

1*5V-2A AC adapter

1*User manual

Optional(Pay extra to get ): Leather Case*1+10 $

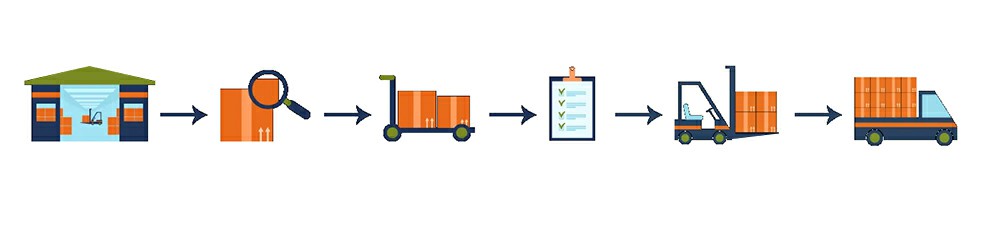

Shipment Information

Color Box: 43*28*9 cm Weight: 2.5 kg

Carton: 42*40*56 cm Weight: 25 kg/CN (10 Pcs/CN)

COMPANY OVERVIEW

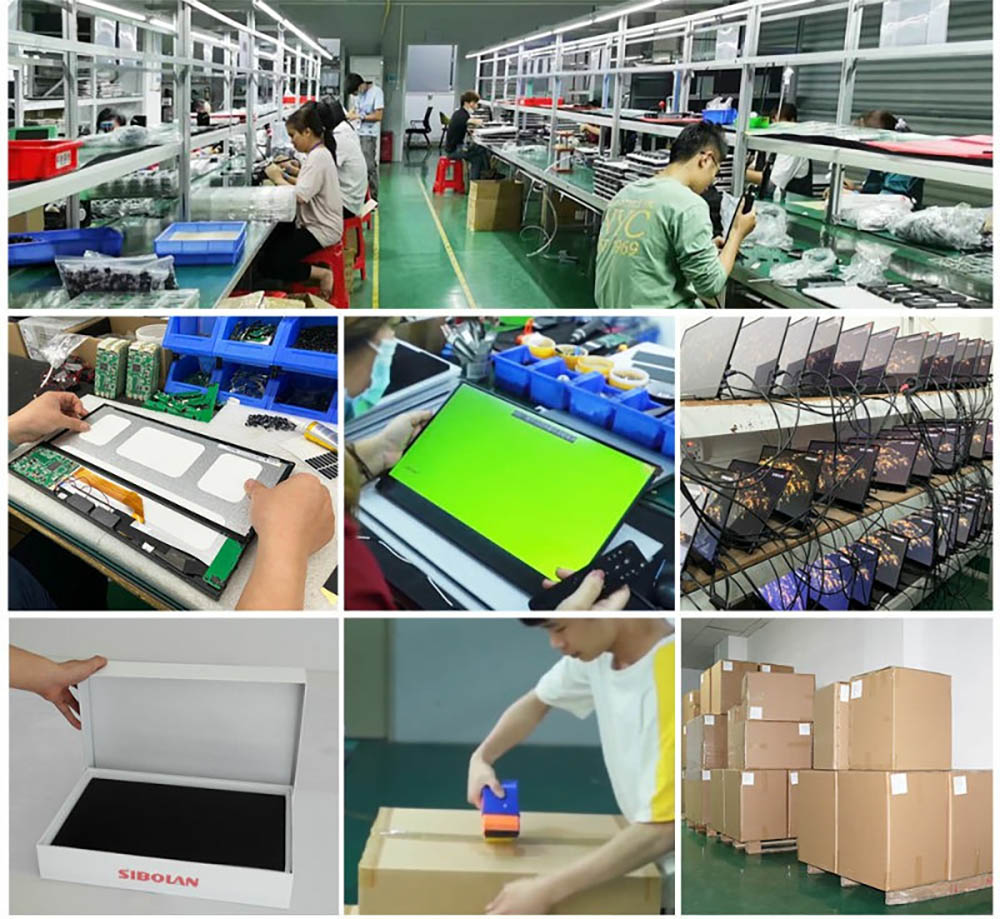

SIBOLAN is a Professional Business Type Manufacturer, Trading Company. based in Shenzhen, Guangdong, China. Main Products: Portable Monitor, 4K Portable Touch Screen Monitor, Wireless Portable Monitor, Gaming Portable Monitor, Wireless HDMI Transmitter And Receiver.Total Employees: 51 - 100 People,Total Annual Revenue 12,672,000 USD Year Established 2011 Certifications Product Certifications(13): CE, ETL, UL, HDMI, KC, RoHS, CE, CE, CE, FCC, RoHS, CE, CE Patents Trademarks(1). Main Markets North America 39.00% Eastern Asia 20.00% Domestic Market 10.00%
